PRONAR 20.72 Arrives in the UK

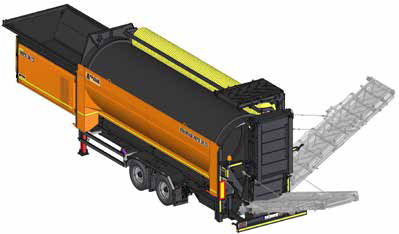

MPB 20.72

Specifications

Engine Deutz combustion engine Caterpillar combustion engine

EU Stage 3B EU Stage 3B C4.4

82 kW / 1600 rpm 87,0 kW / 1600 rpm

Max. 90 kW / 2300 rpm Max.: 92,5 kW /2200 rpm; 530Nm at1400 rpm

Electric motor Electric motor

Gross weight [kg] 24000

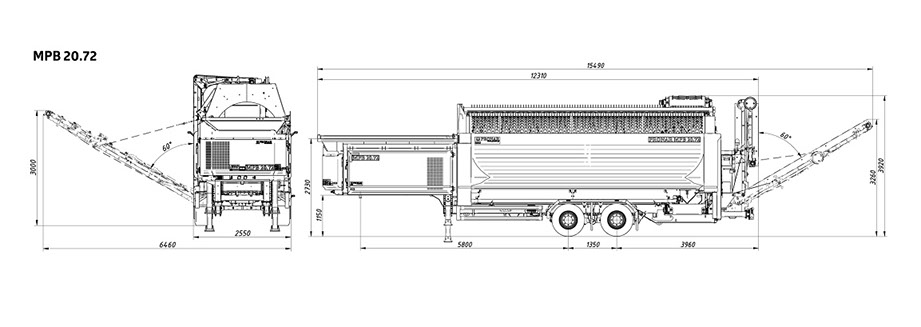

Overall dimensions (length/width/height) [mm] 12350/2550/4000

Maximum speed [km/h] 100

Brake system Pneumatic with EBS

ABS configuration 4S/2M

Brake type drum brake

Additional power supply to EBS module yes

Type of mounting attachment mechanical

Optional Extras

Number of wheels 4

Tyre dimensions 435/50 R19,5 (160J)

Axle manufacturer ATW/ADR

Number of axles: 2

Maximum axle load [kg] 9000

Front support legs 2 mechanical

Rear support legs 1 hydraulic

Road lighting voltage [V] 24 (12)

Type of road lights: LED

Draw-bar eye diameter [mm] ---

Draw-bar eye height [mm] ---

Cutting barriers yes

Mudguards yes

Mud flaps yes

Warning Signs yes

Wheel Chocks yes

Contour Markings yes

*Rotating Warning Beacon yes

Tool Box (1 piece: 5OI) yes

Trommel dimensions (length/width) [mm] 7200/2000

Trommel rotational speed [rpm] up to 19

Effective screen surface [m²] 40,6

In-feed hopper dimensions (length/width) [mm] 3900/2230

In-feed hopper capacity [m³]

Loading height [mm] 2730

Dimensions of exterior side conveyor (length/width) [mm] 4900/1000

Dimensions of exterior rear conveyor (length/width) [mm] 4900/1000

Width of interior longitudinal conveyor [mm] 1300

—

Width of interior transverse conveyor [mm] 800

—

Control voltage [V] 12

Central lubrication system yes

Mudguards

steel

Rear conveyor belt speed control yes

Mud flaps

yes

Later conveyor belt speed control yes

Warning signs

yes

Magnetic roller a

+

Wheel chocks

yes

Magnetic roller b +

Contour markings

yes

Air separator +

*Rotating warning beacon

yes

Stone Grid above in-feed hopper +

Tool box (1 piece: - 5OI)

yes

Chute near in-feed hopper +

Water container (30I) with a soap dispenser

yes

Ball attachment –

Rear conveyor belt advance rate adjustment +

Side conveyor belt advance rate adjustment

+

Hydraulically controlled front support legs –

Sifting mesh size to customers’ requirements

Sieve wall thickness to customers’ requirements

Exterior rear conveyor with length: 3300 mm –

Drawbar eye diameter ø40/ ø 50 +

Drawbar eye diameter ø57 (Swedish standard) –

Side screen safeguards +

Reversible radiator fan (Cleanfix) +

In-feed hopper load sensor (in-feed hopper load/pressure sensor) +

Water container (30I) with a soap dispenser –,
